Campus-configuration microgrid illustration

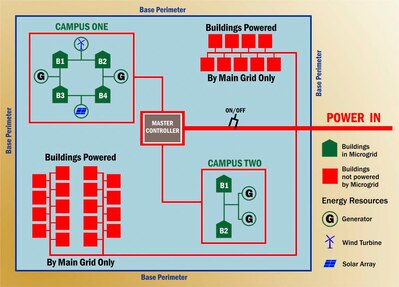

This is a basic representation of campus microgrids on an Air Force installation. Each campus has separate energy resources and both campuses are controlled by a master controller to island them from the main grid and direct power within or between them.
