Small Business | June 3, 2025

How to Access cFolders and Technical Data

Purpose: To provide guidance on how to use the cFolders system and how to access the technical documentation that is housed there.

Objectives:

  • Provide instructions on how to establish a cFolders account
  • Supply multiple methods to search cFolders
  • Provide guidance on how to gain access to restricted technical data

Revised: 6/03/2025

Decorative graphic of folder with technical data that represents DLA cFolders.
How to Access cFolders and Technical Data
Decorative graphic of folder with technical data that represents DLA cFolders.
Photo By: Jakia Velazquez
VIRIN: 240903-D-D0441-9001

Jump To:

Terms Glossary

Select the expand all button or individually select each expandable section to open/close additional information.

What is cFolders?

Collaboration Folders, or cFolders, is a Defense Logistics Agency (DLA) site that gives Vendors access to the technical data (i.e., technical drawings) that is associated with open solicitations so that they can supply DLA with the correct, requested material.

 To access the data in cFolders, Vendors must first register in DIBBS . Access to DIBBS does not automatically provide access to cFolders.
cFolders provides one location for the distribution of documents to allow external users to view data over the internet. Access to cFolders is required for a Vendor to obtain Government owned Technical Data Packages (TDPs).

Back to Top

What are Technical Data Packages?

Technical Data Packages (TDPs) are housed in cFolders and contain essential information for DLA solicitations. These packages typically contain specifications, procedures, drawings, and other relevant documents that Vendors are required to follow when providing the items that are requested in the solicitation. TDPs ensure that Vendors stay in compliance with DLA official requirements of the solicitation.

Back to Top

How to Establish a cFolders Account

For a Vendor to gain access to cFolders, the user must have a DLA Internet Bid Board System (DIBBS) account. Once a DIBBS account is created, Vendors can then set up a cFolders account.

 Ensure the cFolder's password requirements are read and executed as the password criteria is different from DIBBS.

Follow the instructions below to establish a cFolders account:

  1. Access the DIBBS website .

  2. Read and select OK to agree to the terms and conditions.

  3. Log in with the Vendor’s DIBBS User ID and Password

  4. Select My Account and verify the username is the Vendors POCs full name and not a generic or company name. cFolders does not allow access with generic or company names.

  5. Return to the homepage and select the DLA Collaboration Folder (cFolders)  link.

  6. Read and agree to the user agreement by selecting I agree.

  7. Enter the Vendor’s DIBBS User ID and password and select OK on the authentication pop-up. For first time use, your User ID and password for cFolders and DIBBS are the same.

  8. Create a password for the cFolder's account when the Change Password prompt appears.

  9. Use the same User ID and the new cFolder's password to access the cFolders account. The Vendor’s DIBBS User ID and new cFolder's password will not change.

Even though cFolders uses the same User ID as DIBBS for logging on, the passwords might be different because the cFolders password criteria is more stringent.

See the necessary password requirements for cFolders below when creating a new password:

  • Must be a minimum of 15 characters.
  • Must begin with a letter or number.
  • New password cannot begin with special character.
  • The first three characters of the password must all be different.
  • New password must have no more than 4 letters in a row, or 4 numbers in a row. (i.e. 5678, aBcD).
  • Must have at least 2 upper case characters.
  • Must have at least 2 lower case characters.
  • Must have at least 2 numbers.
  • Must have 2 special characters

Back to Top

How to Access and Search cFolders

Vendors can access and search cFolders through multiple methods.

When accessing cFolders the primary three steps are:

  1. Need to Login the first time into cFolders
  2. In order to search/filter in cFolders, Supplier must first find the interested solicitation and then select the Tech Docs link
  3. Once the Tech Docs link is open it will redirect to cFolders login, Supplier will need to login

Access cFolders

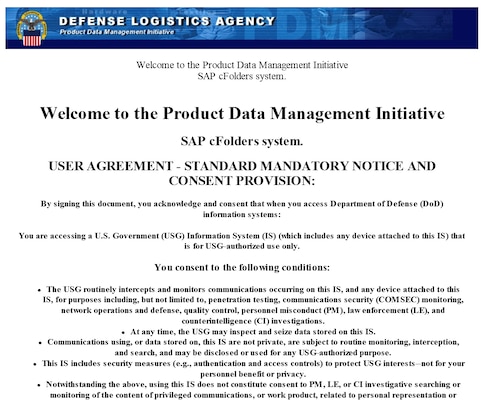

  1. Visit the cFolders  site directly.

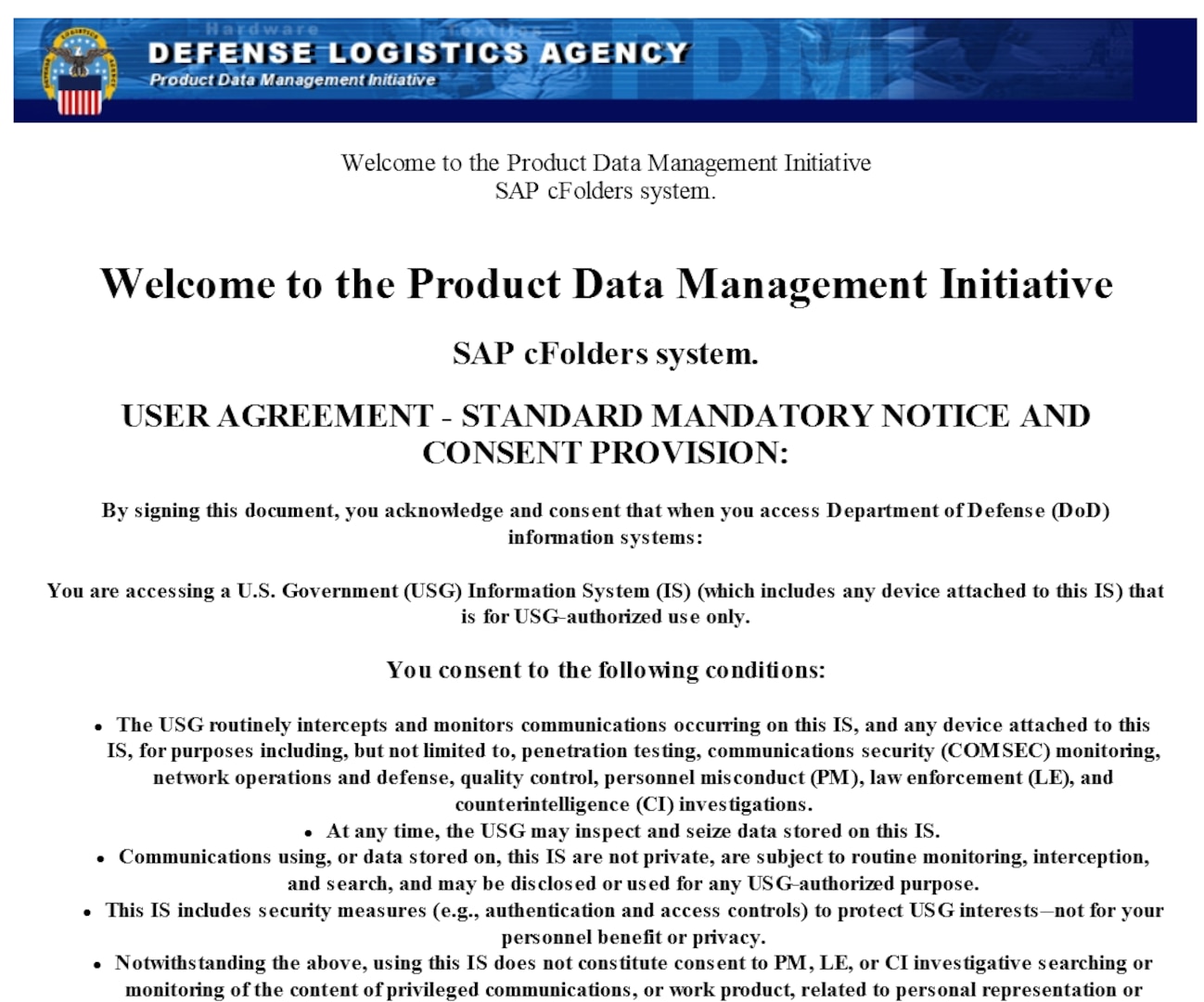

Visit the cFolders site directly at https://pcf1x.bsm.dla.mil/cfolders/.
How to Access cFolders and Technical Data
Visit the cFolders site directly at https://pcf1x.bsm.dla.mil/cfolders/.
Photo By: Jakia Velazquez
VIRIN: 240820-D-D0441-9001

  1. Follow the cFolders log in directions.

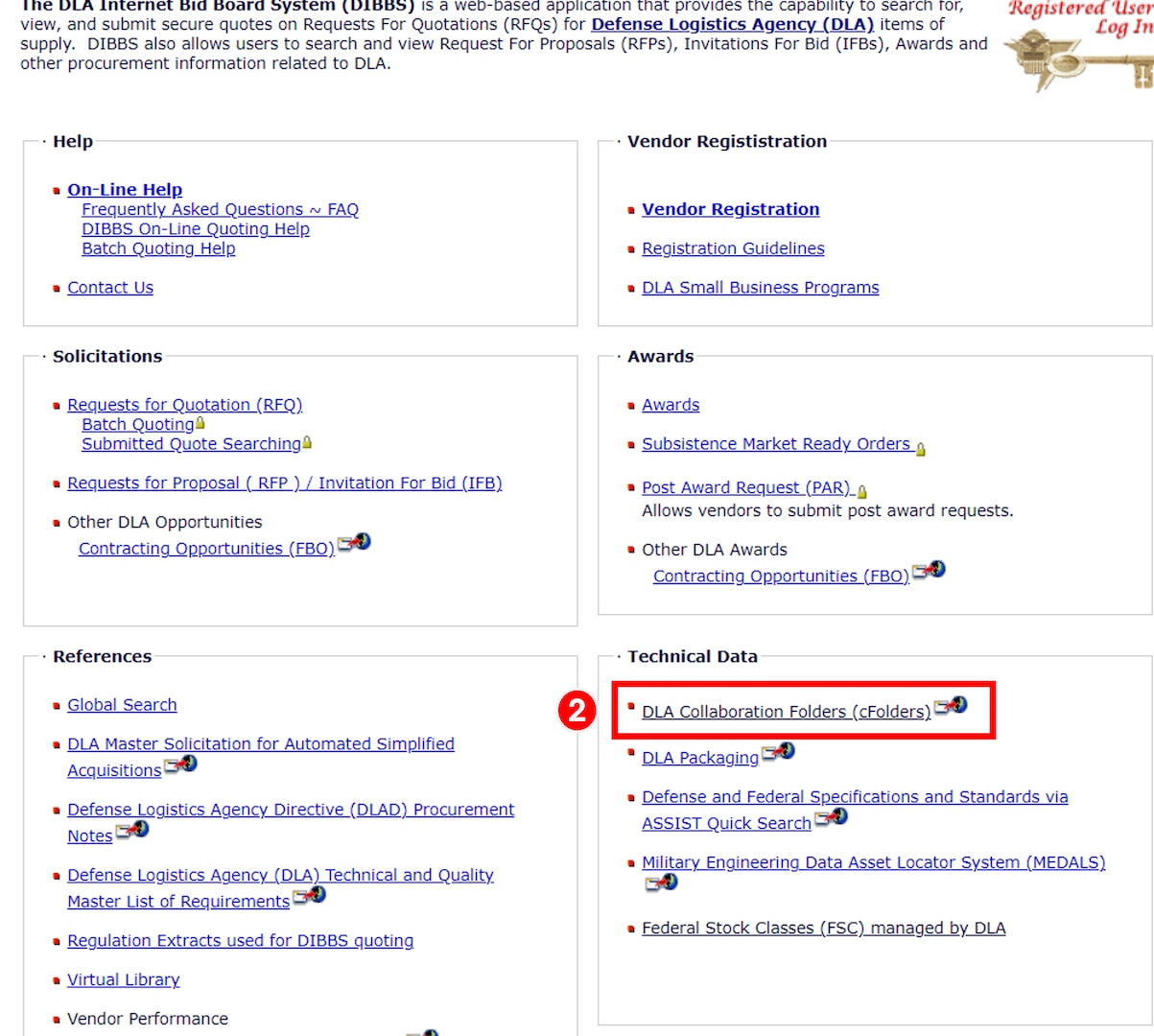

  1. Visit the DIBBS Homepage .
  2. Select the DLA Collaboration Folders (cFolders) link under the Technical Data section.

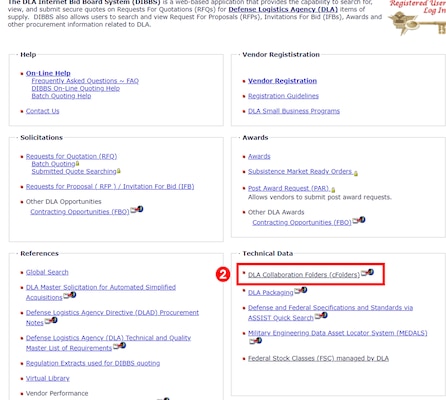

Access cFolders by clicking on the "DLA Collaboration Folders (cFolders)" link under the Technical Data section.
How to Access cFolders and Technical Data
Access cFolders by clicking on the "DLA Collaboration Folders (cFolders)" link under the Technical Data section.
Photo By: Jakia Velazquez
VIRIN: 240806-D-D0441-9001

  1. Follow the cFolders log in directions.

Search cFolders

Note: RFQs and RFPs are forms of DLA solicitations. Vendors are able to access those solicitations, and the TDPs housed there, through cFolders.

Search by Category

  1. Visit the DIBBS Homepage .
  2. Select the Requests for Quotation (RFQ) link under the Solicitations section.

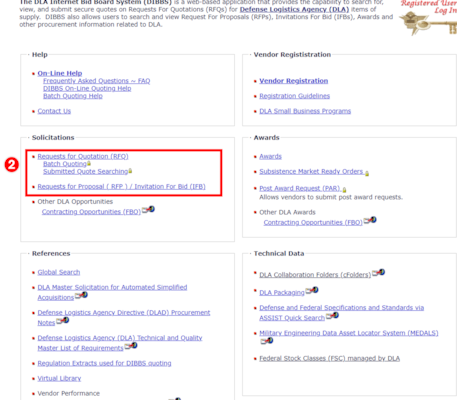

Accessing cFolders by through DIBBS RFQ or RFP.
How to Access cFolders and Technical Data
Access cFolders by through DIBBS RFQ or RFP.
Photo By: Jakia Velazquez
VIRIN: 240806-D-D0441-9011

  1. Select a Search Category from the dropdown to conduct a RFQ Database Search: National Stock Number (NSN)/Part Number (PN), Federal Supply Class (FSC), Solicitation Number, Purchase Request (PR),  Nomenclature, Approved Commercial and Government Entity code (CAGE), or Approved Part Number.
  2. Enter search value(s) on a single line with or without a comma separator.
  3. Select Search.

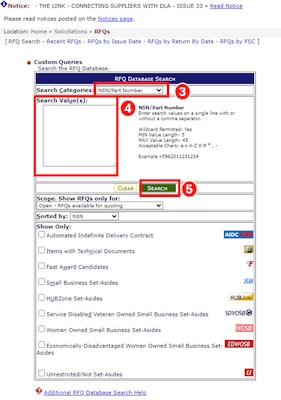

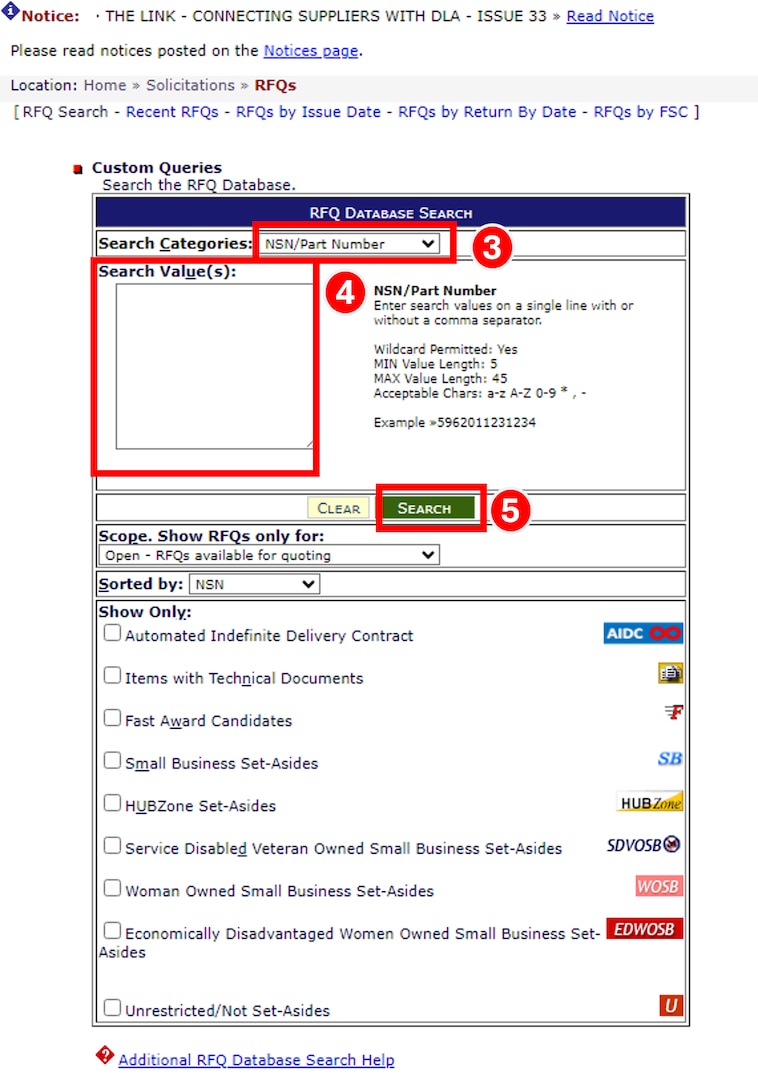

Select a Search Category and enter a search value  from the dropdown to conduct a RFQ Database Search. Click Search.
How to Access cFolders and Technical Data
Select a Search Category and enter a search value from the dropdown to conduct a RFQ Database Search. Click Search.
Photo By: Jakia Velazquez
VIRIN: 240822-D-D0441-9003

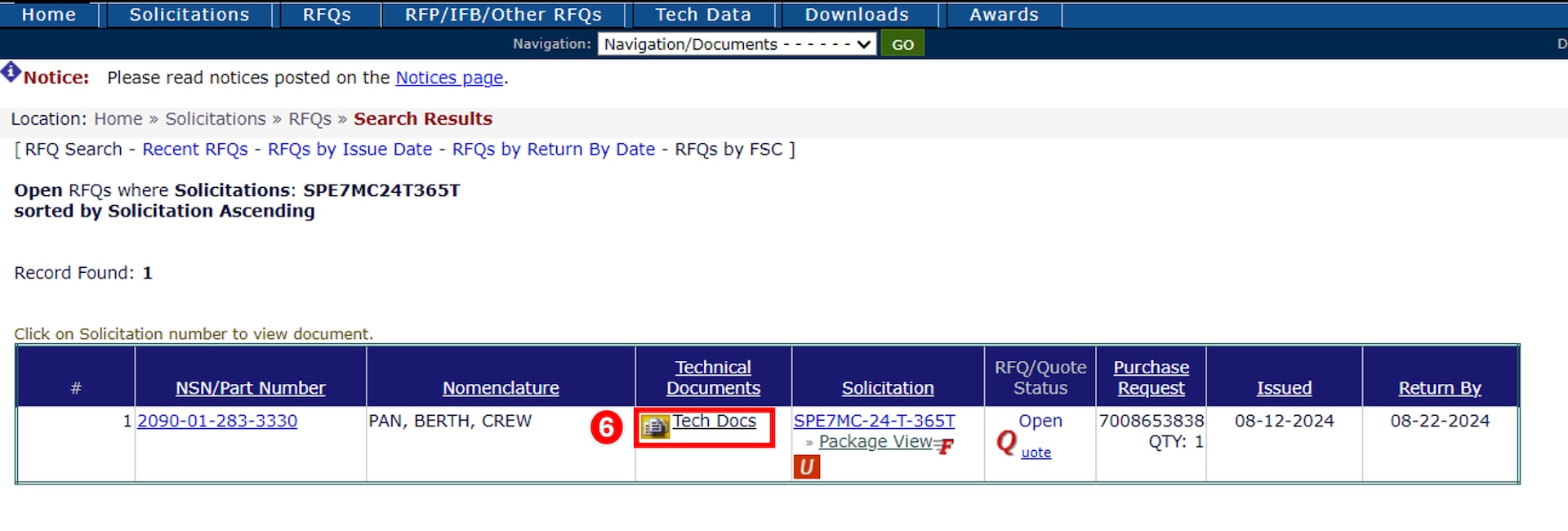

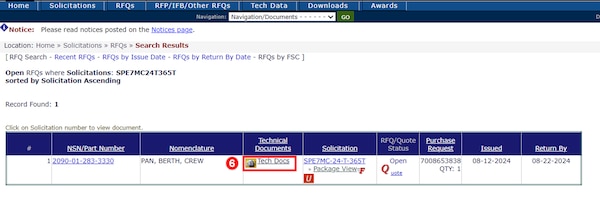

  1. Locate the desired solicitation information and select the link labeled Tech Docs.

Locate the desired solicitation information and click on the link labeled Tech Docs.
How to Access cFolders and Technical Data
Locate the desired solicitation information and click on the link labeled Tech Docs.
Photo By: Jakia Velazquez
VIRIN: 240822-D-D0441-9004

  1. Follow the cFolders log in directions.

Search by Words or Phrases

  1. Input words or phrases (i.e., pan, berth, crew) into the RFQ Solicitation Text Search field to search open RFQ solicitation documents.
  2. Select Query.

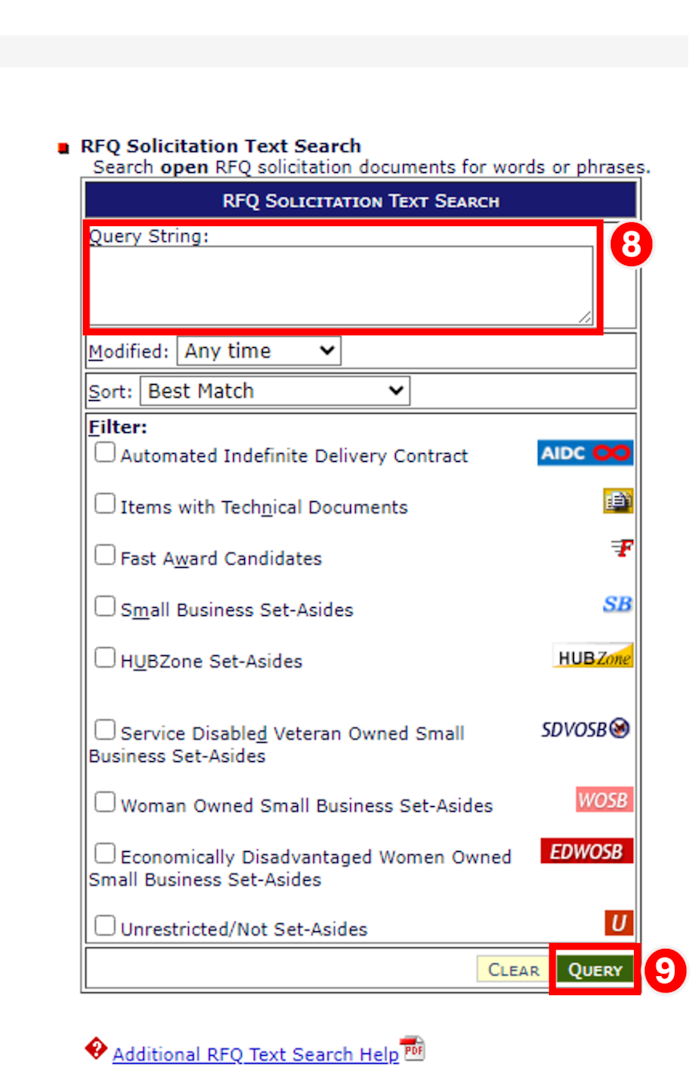

Select a Search Category from the dropdown and enter a search value to conduct a RFQ Database Search. Click Query.
How to Access cFolders and Technical Data
Select a Search Category from the dropdown and enter a search value to conduct a RFQ Database Search. Click Query.
Photo By: Jakia Velazquez
VIRIN: 240826-D-D0441-9001

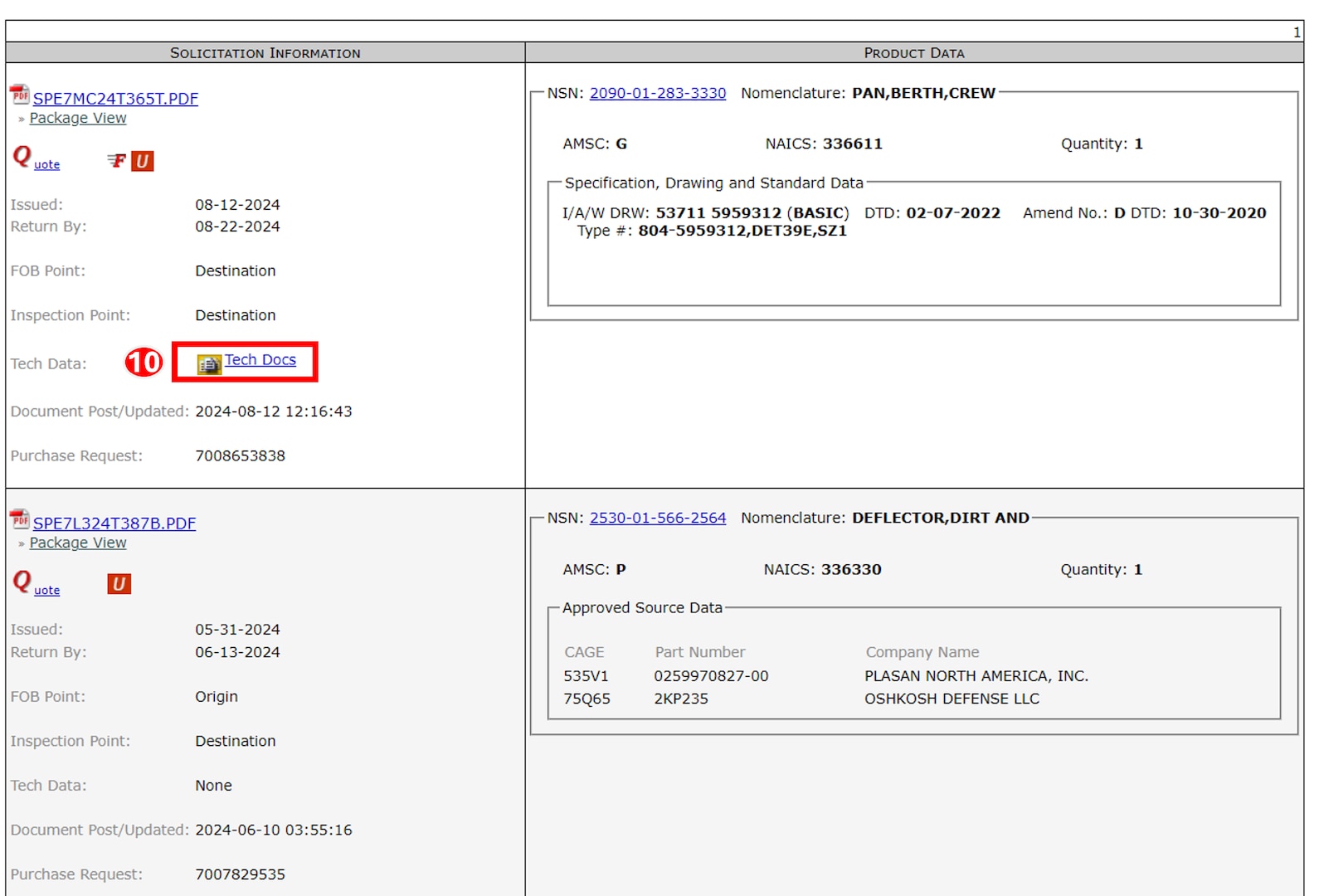

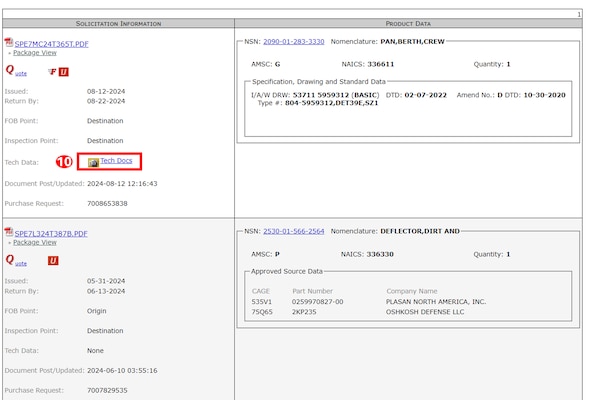

  1. Locate the desired solicitation information and select the link labeled Tech Docs.

Locate the desired solicitation information and click on the link labeled Tech Docs.
How to Access cFolders and Technical Data
Locate the desired solicitation information and click on the link labeled Tech Docs.
Photo By: Jakia Velazquez
VIRIN: 240916-D-D0441-9001

  1. Follow the cFolders log in directions.

  1. Visit the DIBBS Homepage .
  2. Select the Requests for Proposal (RFP) link under the Solicitations section.

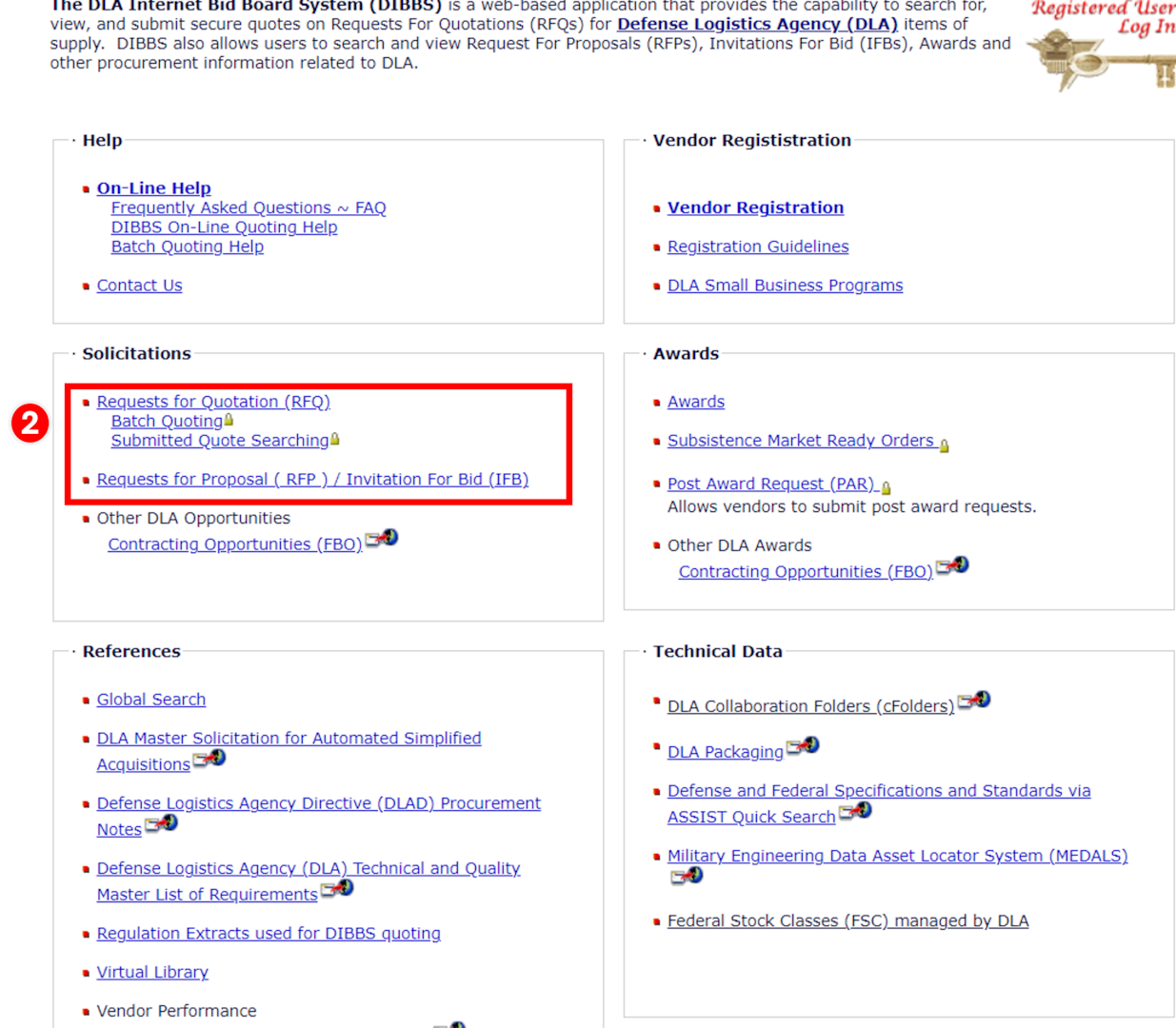

Accessing cFolders by through DIBBS RFQ or RFP.
How to Access cFolders and Technical Data
Access cFolders by through DIBBS RFQ or RFP.
Photo By: Jakia Velazquez
VIRIN: 240806-D-D0441-9011

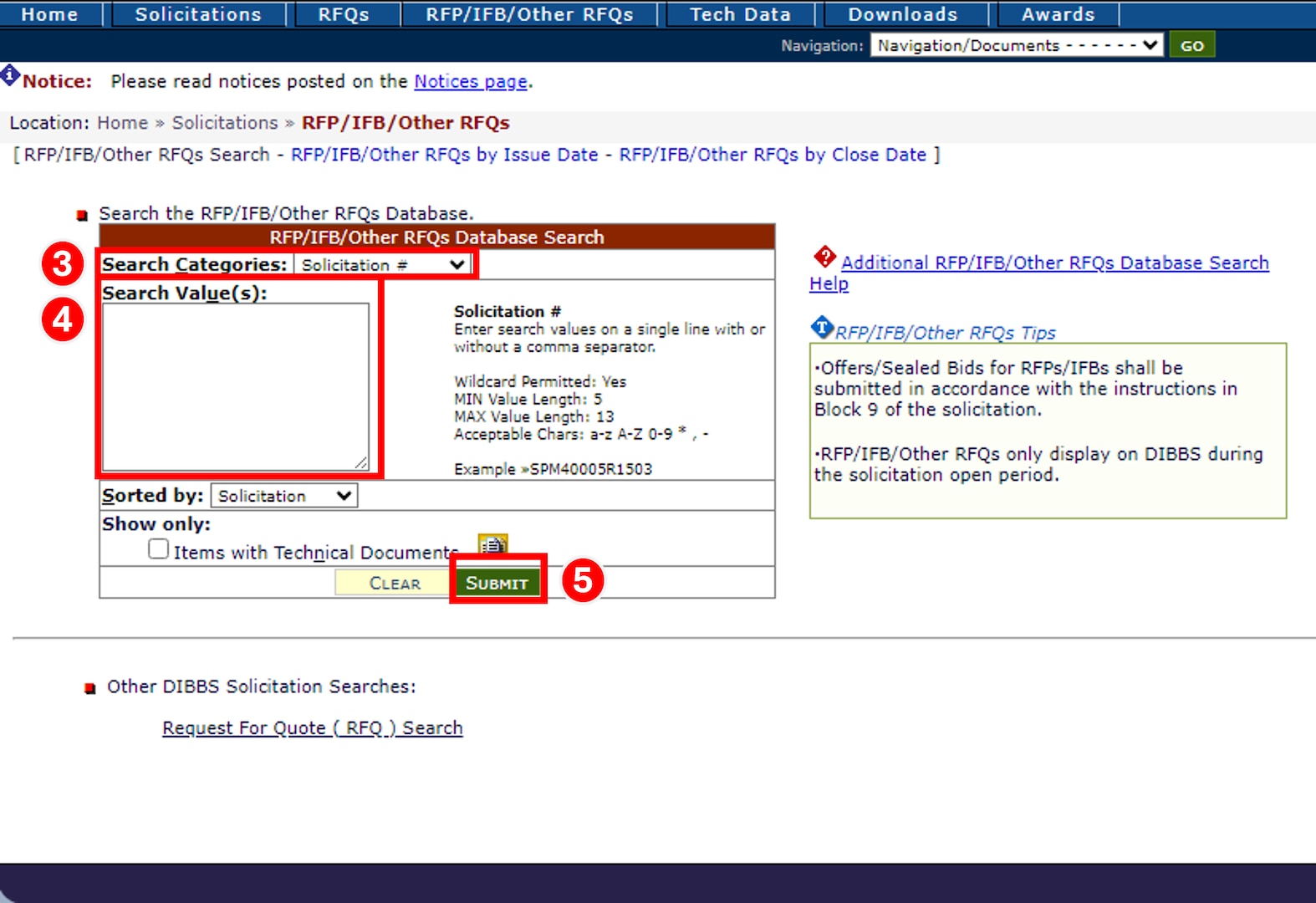

  1. Select a Search Category from the dropdown to conduct a RFP/IFB/Other RFQs Database Search: Solicitation Number, NSN/PN, Nomenclature, Buyer Code.
  2. Enter search value(s) on a single line with or without a comma separator.
  3. Select Submit.

Select a Search Category from the dropdown and enter a search value to conduct a RFP/IFB/Other RFQs Database Search.
How to Access cFolders and Technical Data
Select a Search Category from the dropdown and enter a search value to conduct a RFP/IFB/Other RFQs Database Search.
Photo By: Jakia Velazquez
VIRIN: 240916-D-D0441-9002

  1. Locate the desired solicitation information and select the link labeled Tech Docs.

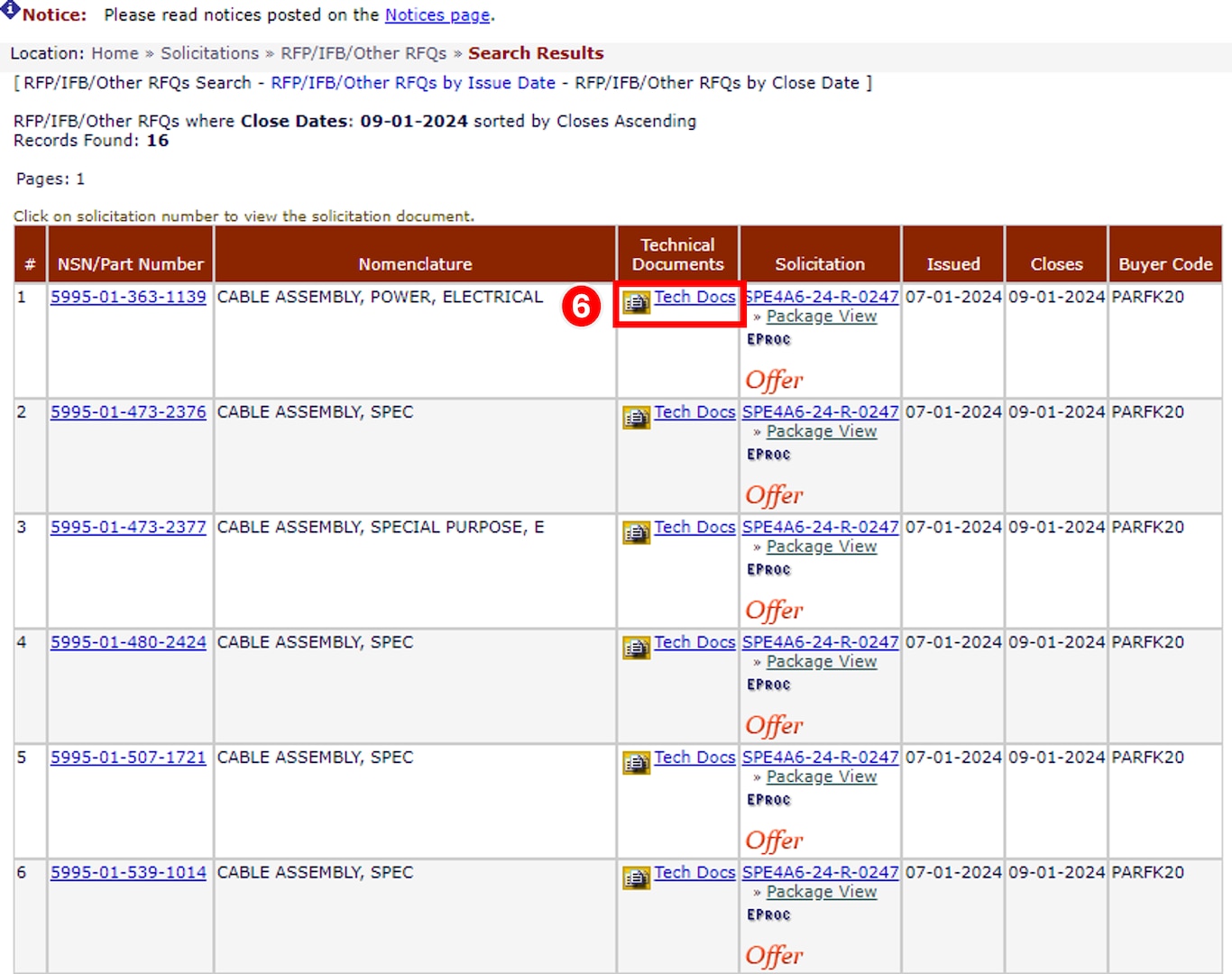

Locate the desired solicitation information and click on the link labeled Tech Docs.
How to Access cFolders and Technical Data
Locate the desired solicitation information and click on the link labeled Tech Docs.
Photo By: Jakia Velazquez
VIRIN: 240916-D-D0441-9003

  1. Follow the cFolders log in directions.

  1. Visit the DIBBS Homepage .

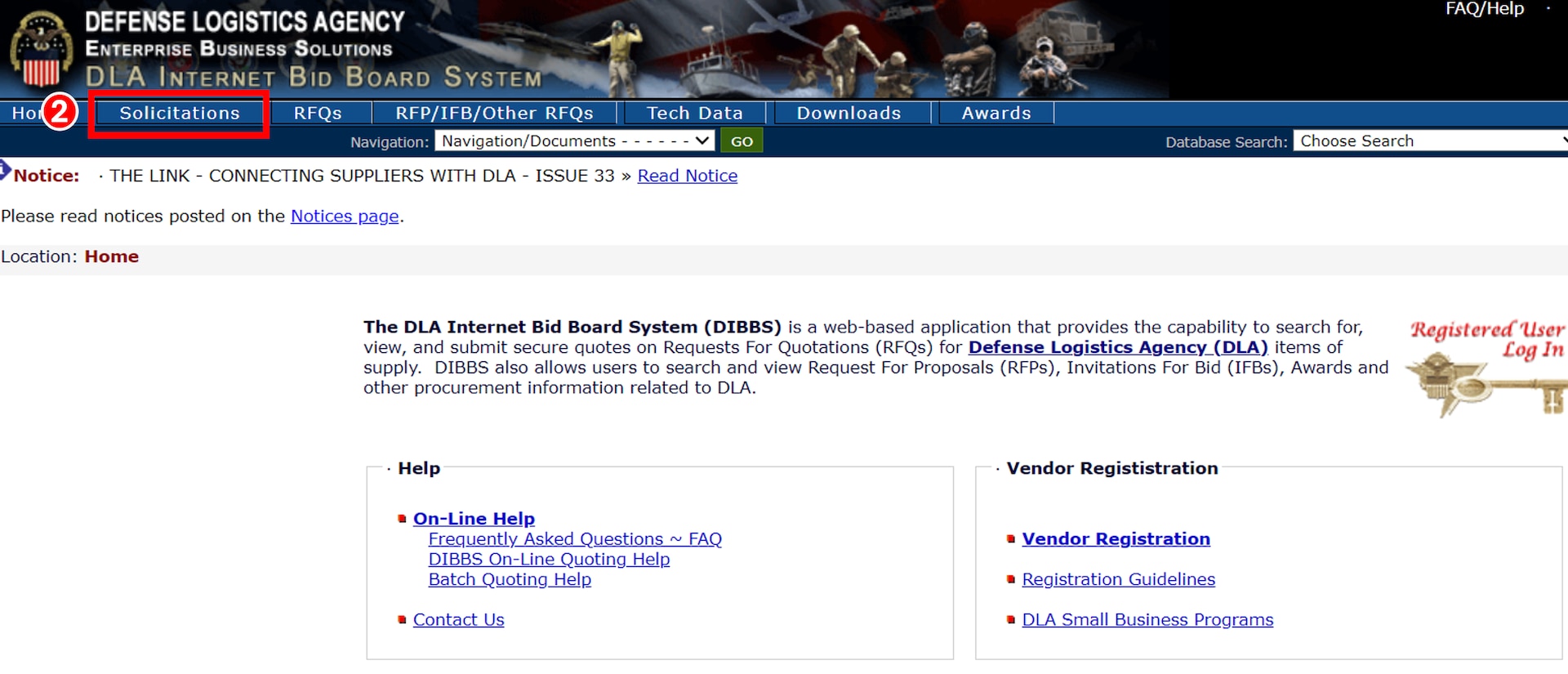

  2. Select the Solicitations tab at the top of the screen.

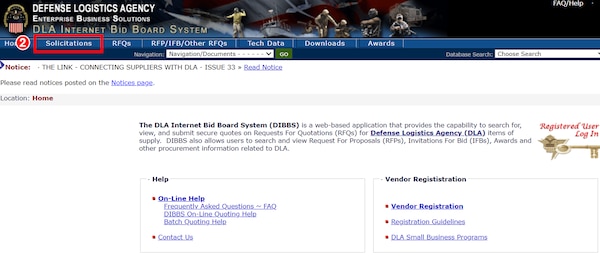

Click on the "Solicitations" tab to locate solicitations.
How to Access cFolders and Technical Data
Click on the "Solicitations" tab to locate solicitations.
Photo By: Jakia Velazquez
VIRIN: 240806-D-D0441-9013

  1. Input the solicitation number into the search bar.
  2. Select Go.

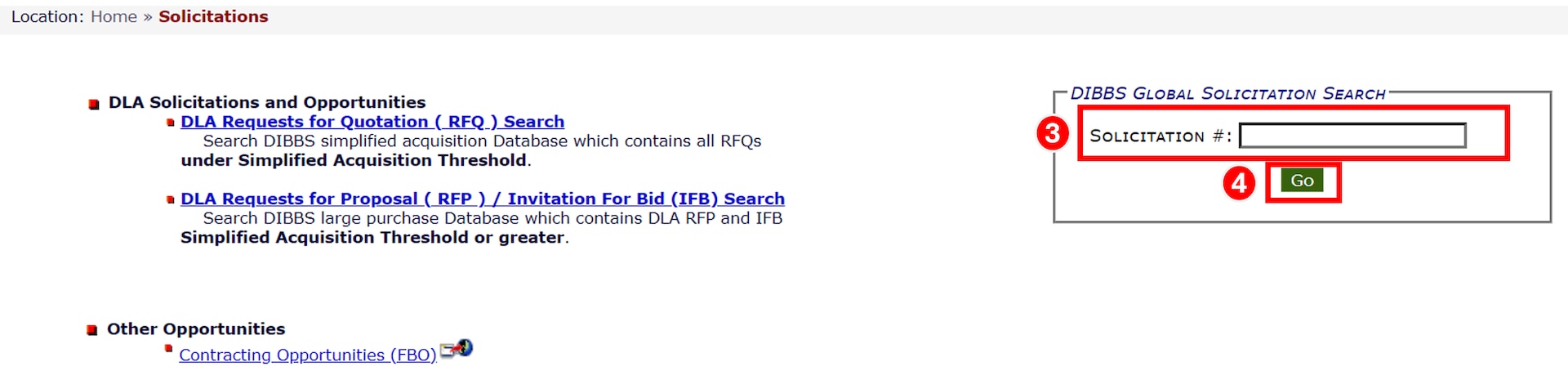

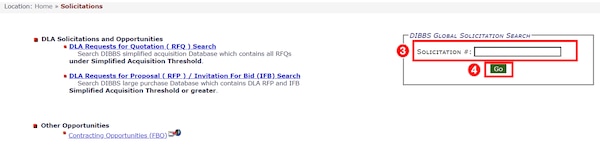

Input the solicitation number into the search bar and click "Go."
How to Access cFolders and Technical Data
Input the solicitation number into the search bar and click "Go."
Photo By: Jakia Velazquez
VIRIN: 240806-D-D0441-9014

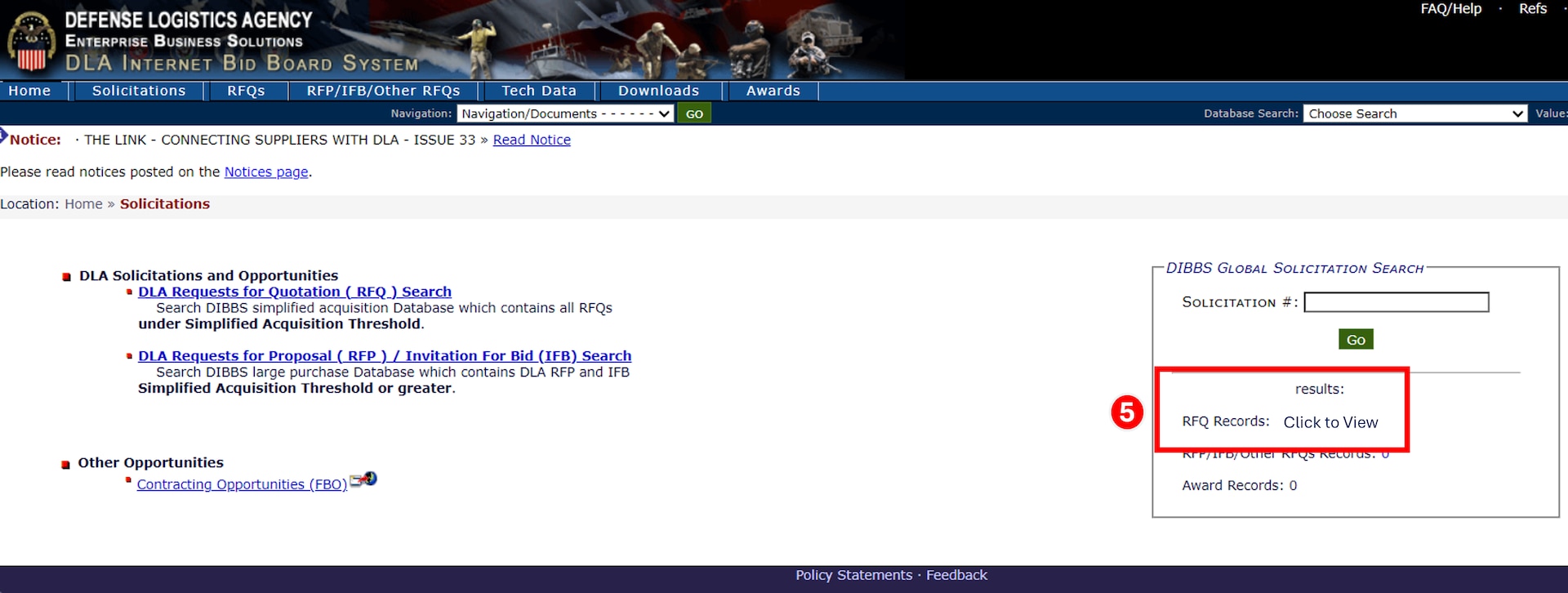

  1. Select Click to View.

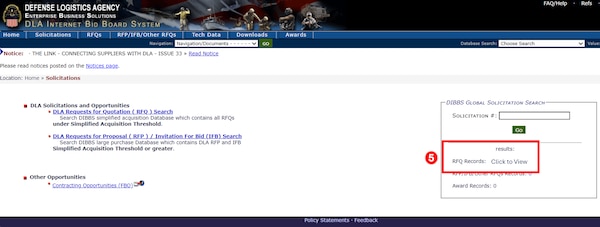

Select "Click to View" to access the RFQ records.
How to Access cFolders and Technical Data
Select "Click to View" to access the RFQ records.
Photo By: Jakia Velazquez
VIRIN: 240806-D-D0441-9015

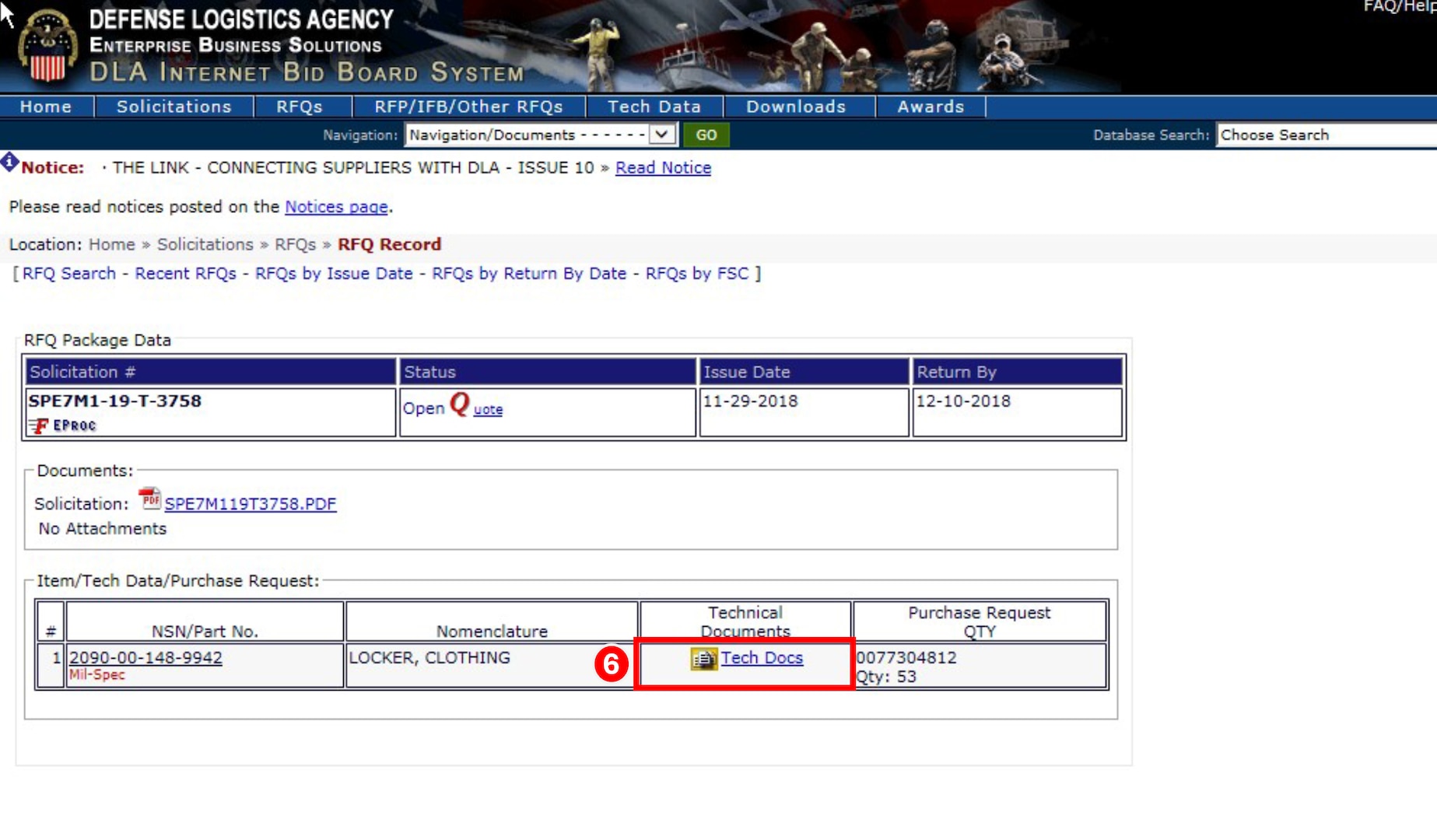

  1. Select the Tech Docs link.

Click on "Tech Docs" to access the cFolders site.
How to Access cFolders and Tech Data
Click on "Tech Docs" to access the cFolders site.
Photo By: Jakia Velazquez
VIRIN: 240806-D-D0441-9016

  1. Follow the cFolders log in directions.

cFolders Log In Directions

  1. Read and select I Agree to agree to the cFolders Terms of Use Warning disclosures.

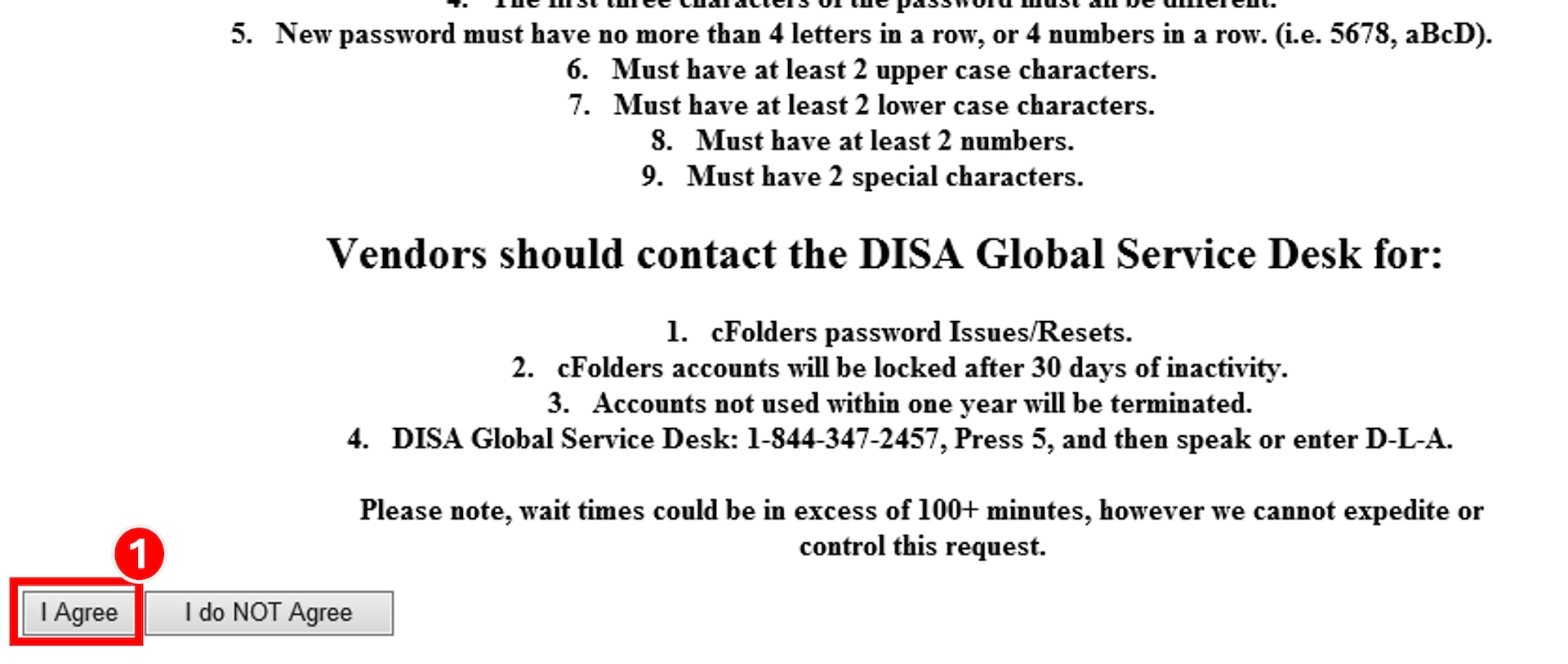

cFolders splash screen, the I agree button highlighted
How to Access cFolders and Technical Data
cFolders splash screen, to login select the I agree button.
Photo By: John McCormick
VIRIN: 250516-D-D0441-9001
​

  1. Enter cFolders Username and Password when prompted.
  2. Select Ok.

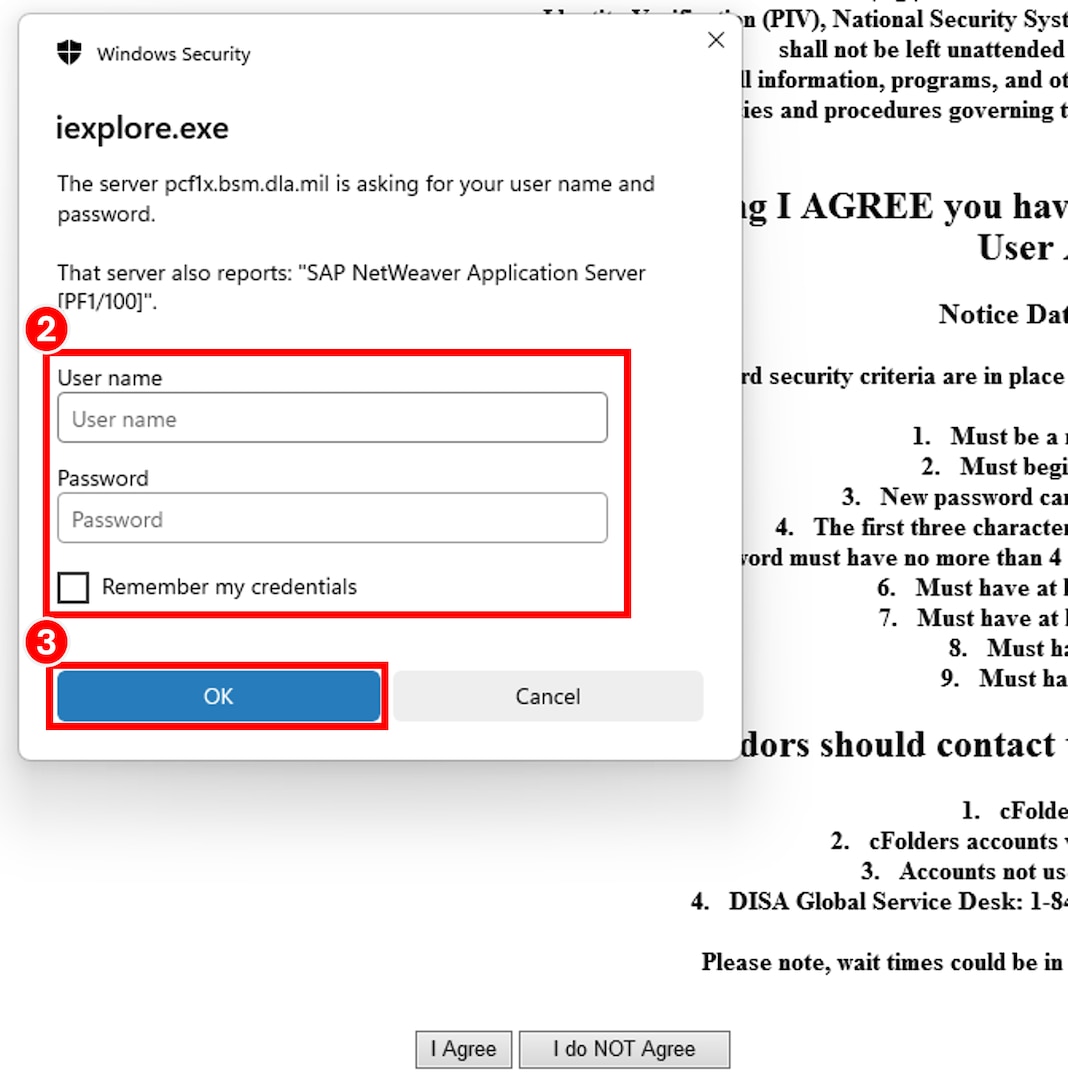

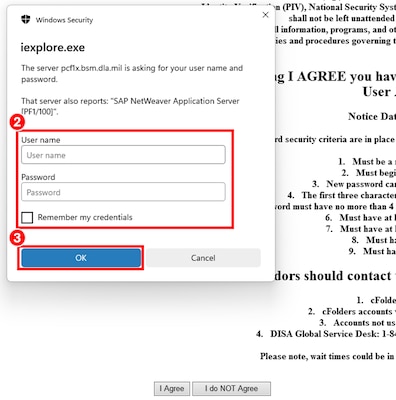

cFolders Login dialog box, enter username and password highlighted then user selects the Ok button.
How to Access cFolders and Technical Data
To log into cFolders enter DLA Internet Bid Board System Username which is same for cFolders, enter the unique password for cFolders and then select the Ok button to continue.
Photo By: John McCormick
VIRIN: 250516-D-D0441-9002

Back to Top

How to Filter cFolders for Technical Documents

Choose a search or filter method to locate the technical data packages.

  1. Select Filter for Solicitation Folders. This allows a Vendor to filter for a solicitation folder.

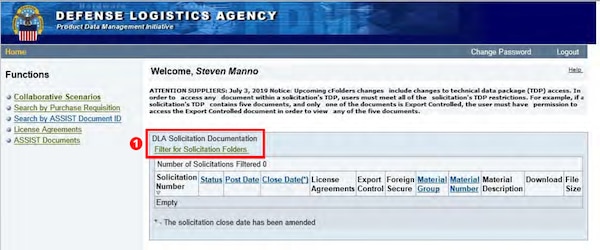

Vendors can filter a solicitation folder by clicking on Filter for Solicitation Folders.
How to Access cFolders and Technical Data
Vendors can filter a solicitation folder by clicking on Filter for Solicitation Folders.
Photo By: Jakia Velazquez
VIRIN: 240806-D-D0441-9004

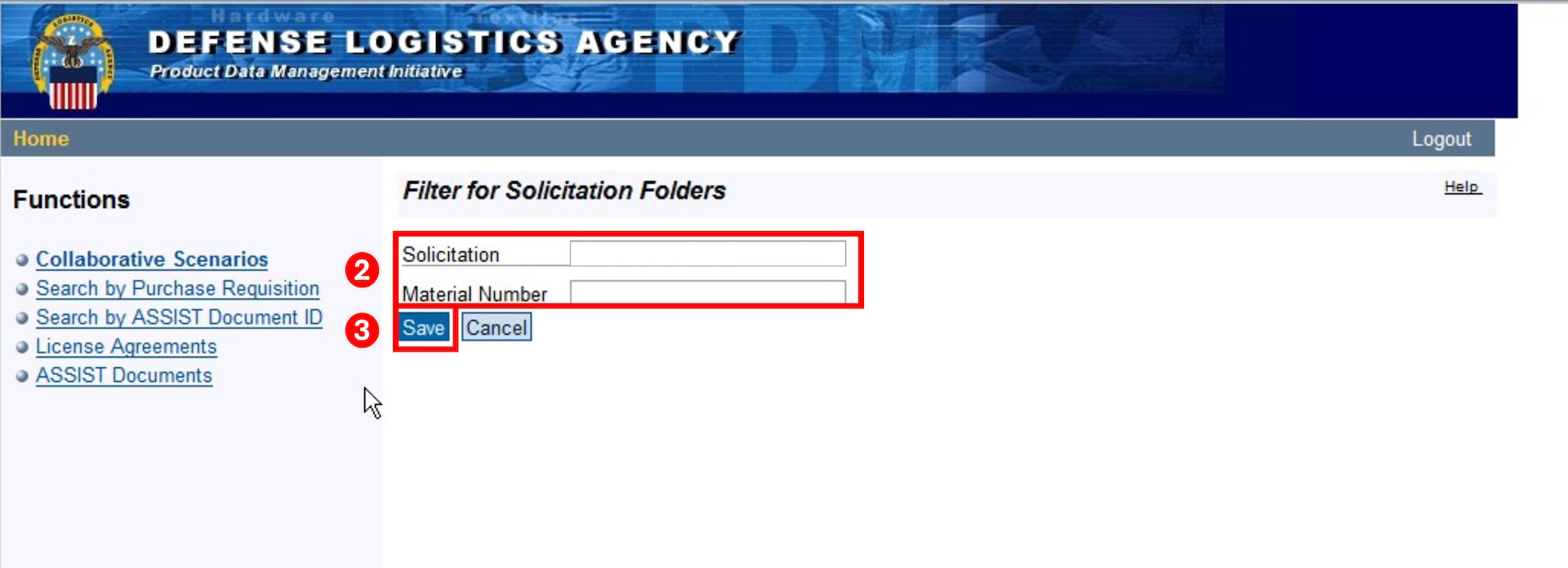

  1. Enter a valid Solicitation Number and/or Material Number on the next screen. Please note that wildcards (*) are not permitted when searching.
  2. Select Save.

Enter a valid Solicitation and/or Material Number and click "Save" to filter Solicitation folders.
How to Access cFolders and Technical Data
Enter a valid Solicitation and/or Material Number and click "Save" to filter Solicitation folders.
Photo By: Jakia Velazquez
VIRIN: 240827-D-D0441-9002

  1. Select the relevant solicitation folder from the Solicitation Number column to display the material number(s).

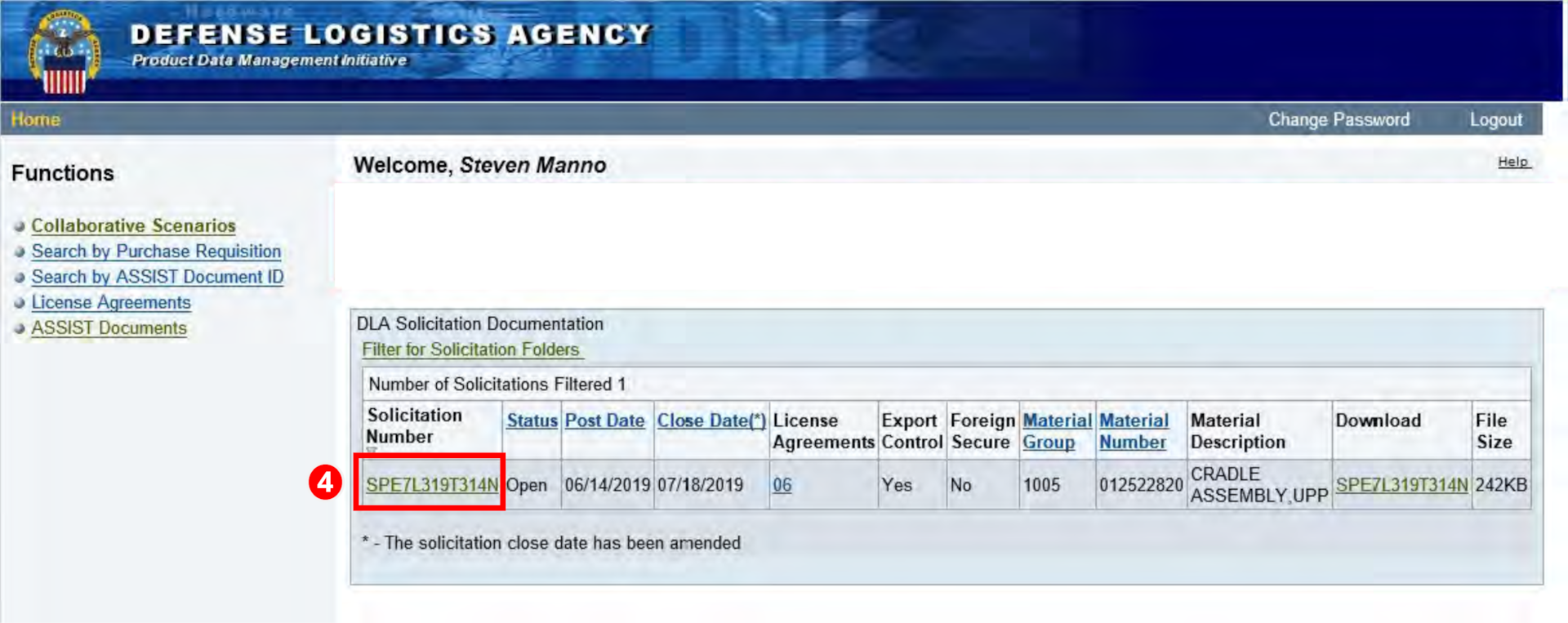

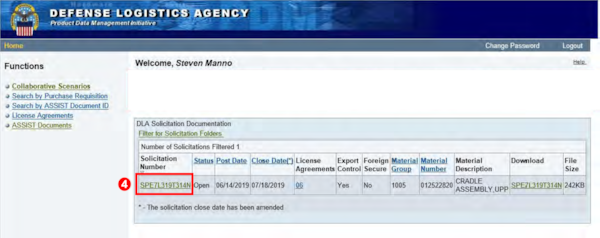

Select the relevant solicitation folder from the Solicitation Number column.
How to Access cFolders and Technical Data
Select the relevant solicitation folder from the Solicitation Number column.
Photo By: Jakia Velazquez
VIRIN: 240827-D-D0441-9003

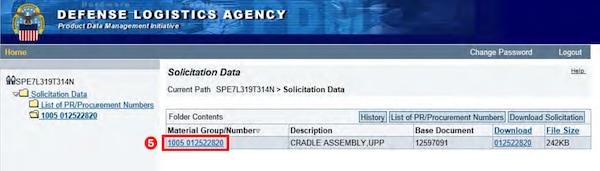

  1. Select the material group/number from the Material Group/Number column to display the TDP housed within the solicitation folder.

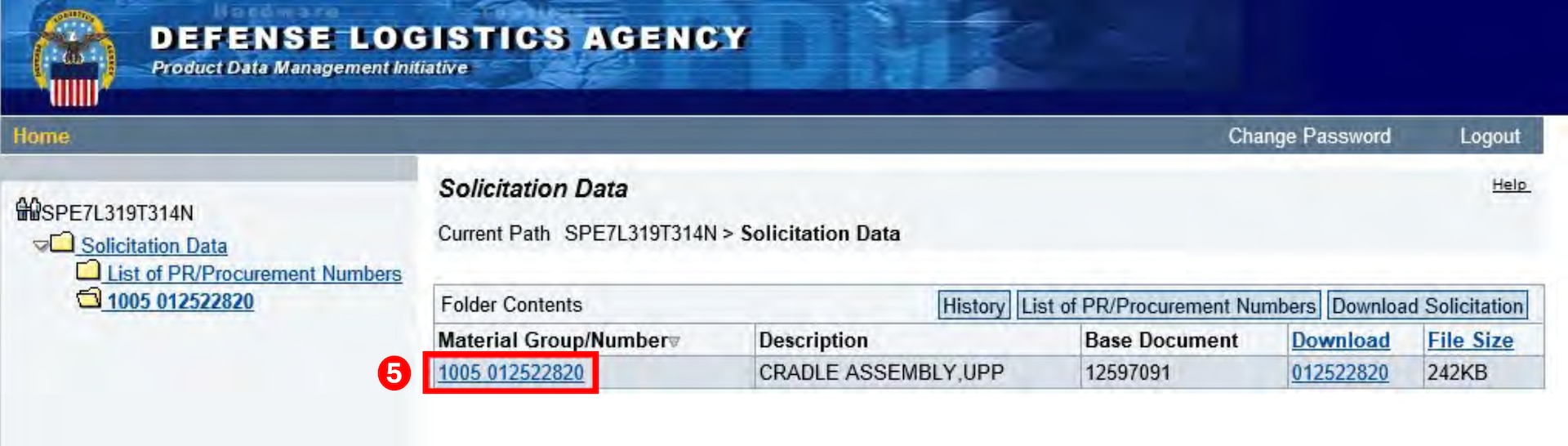

Select the material group/number from the Material Group/Number column to display the TDP housed within the solicitation folder.
How to Access cFolders and Technical Data
Select the material group/number from the Material Group/Number column to display the TDP housed within the solicitation folder.
Photo By: Jakia Velazquez
VIRIN: 240827-D-D0441-9004

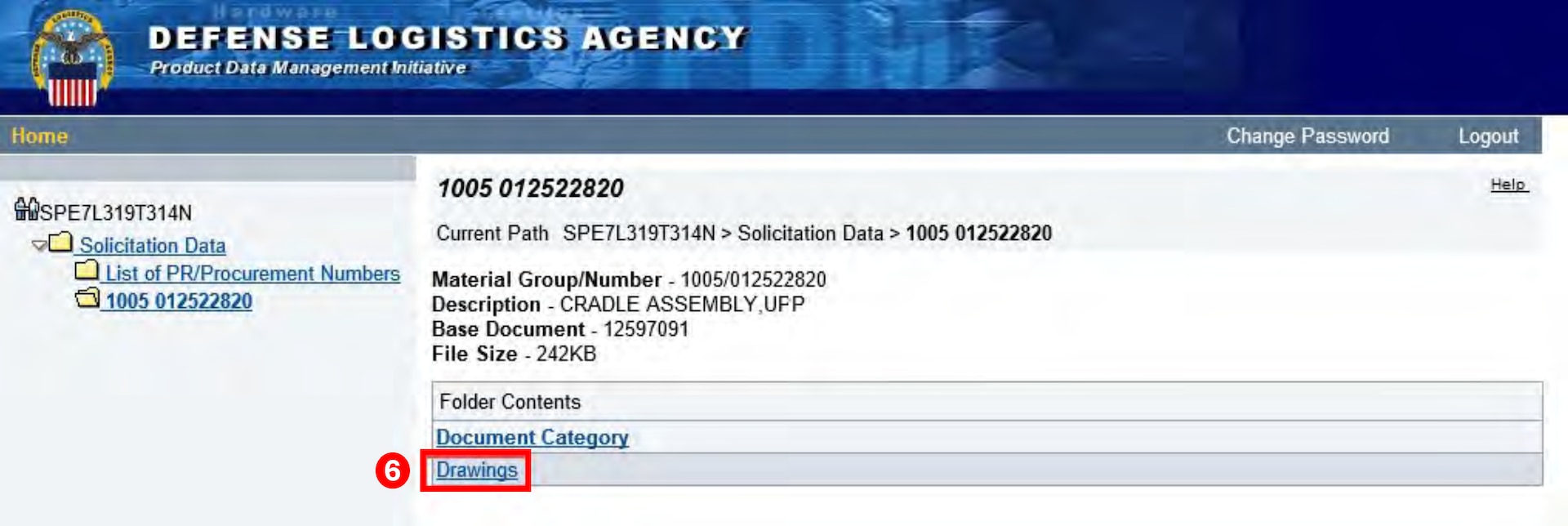

  1. When the folder contents appear, select the type of technical data to view. Folder contents may include, but are not limited to, drawings, mylars, Quality Assurance Provisions (QAPs), and Contract Data Requirements Lists (CDRLs).

When the folder contents appear, select the type of technical data to view.
How to Access cFolders and Technical Data
When the folder contents appear, select the type of technical data to view.
Photo By: Jakia Velazquez
VIRIN: 240827-D-D0441-9005

  1. Select an item in the Document Number column to view the tech data available for download.

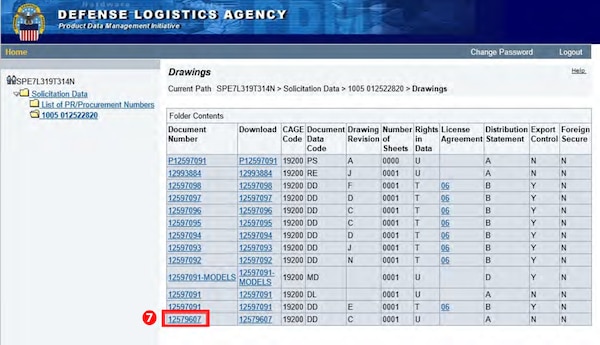

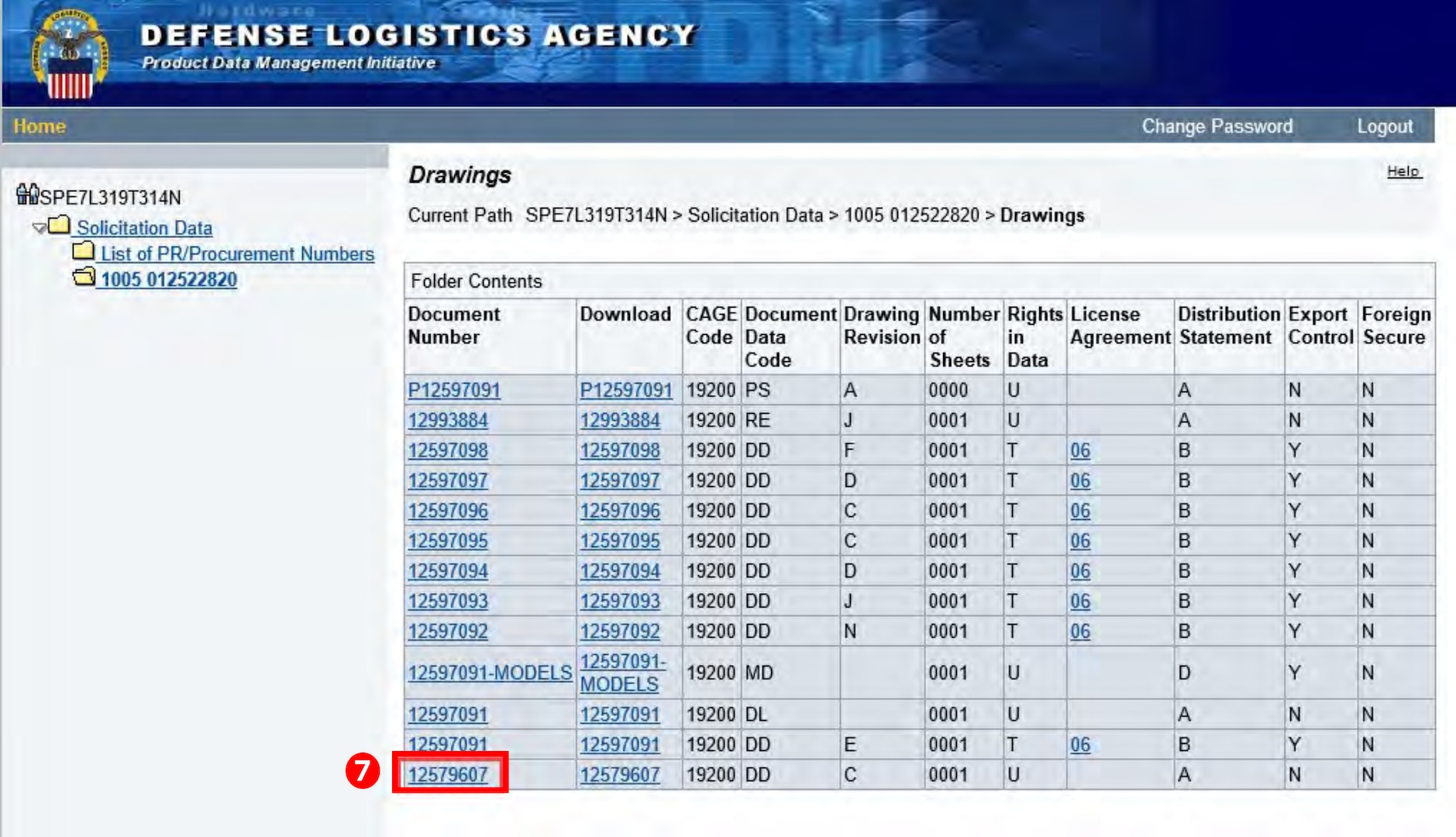

Select an item in the Document Number column to view the tech data available for download.
How to Access cFolders and Technical Data
Select an item in the Document Number column to view the tech data available for download.
Photo By: Jakia Velazquez
VIRIN: 240827-D-D0441-9006

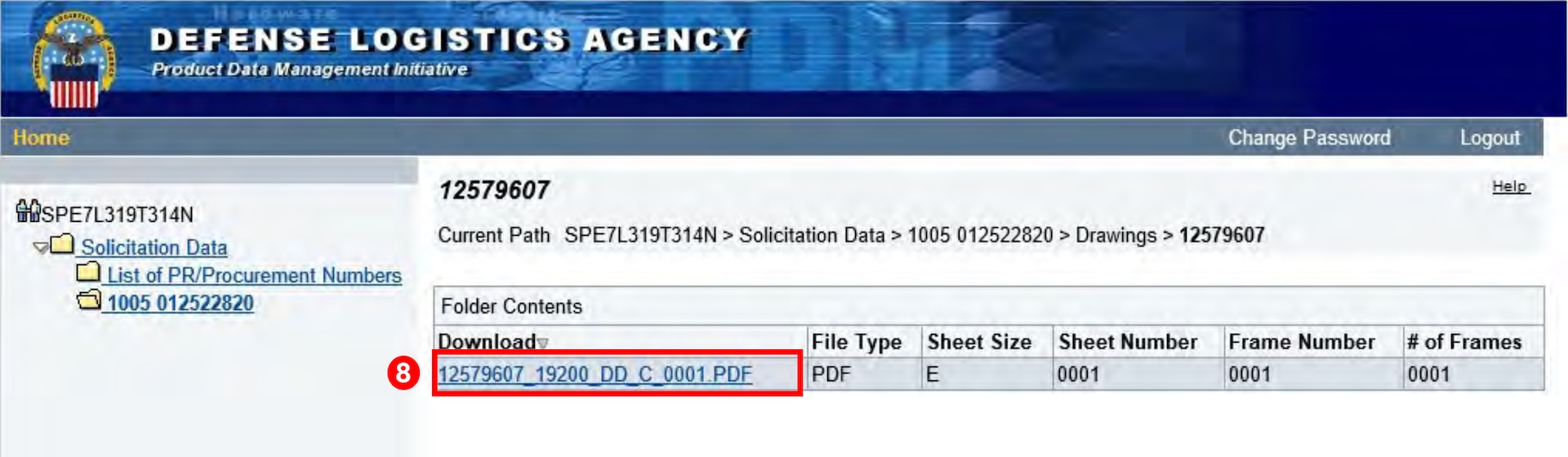

  1. Download the tech data by selecting on the link in the Download column.

Note: Some drawings may require IADS software (Image viewer), but the majority only require a pdf viewer.

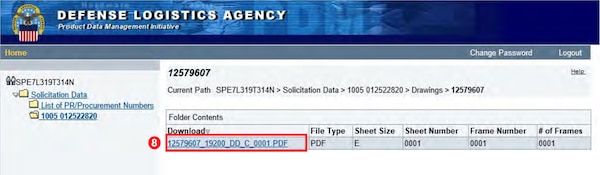

Download the tech data by clicking on the link in the Download column.
How to Access cFolders and Technical Data
Download the tech data by clicking on the link in the Download column.
Photo By: Jakia Velazquez
VIRIN: 240827-D-D0441-9007

 If a Vendor needs to view TDPs after award, they will need to submit a Post Award Request (PAR Code VR18) when working with Aviation and Land & Maritime.  For all other supply chains, reach out to the Contracting Officer on the solicitation or award for resolution.

Back to Top

How to Access Restricted Data

Vendors who are registered in DIBBS have access to non-restricted data (Distribution Statement A ), but they may encounter restricted data (Distribution Statements C & D ) in cFolders.

 Classified Data will never be posted on cFolders only dummy folder icons indicating that the drawing is classified.

Classified

Classified information is any knowledge that is owned by, is produced by or for, or is under the control of the Government and must be protected against unauthorized disclosure. Classified material can be information, a drawing, a part, or a piece of a part that is classified.

 Any questions related to classified data for Aviation and Land & Maritime requires the Vendor to submit a PAR to their contract administrator. For all other supply chains, reach out to the contracting officer on the solicitation or award for resolution.

Restricted

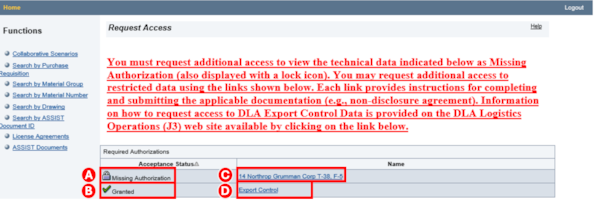

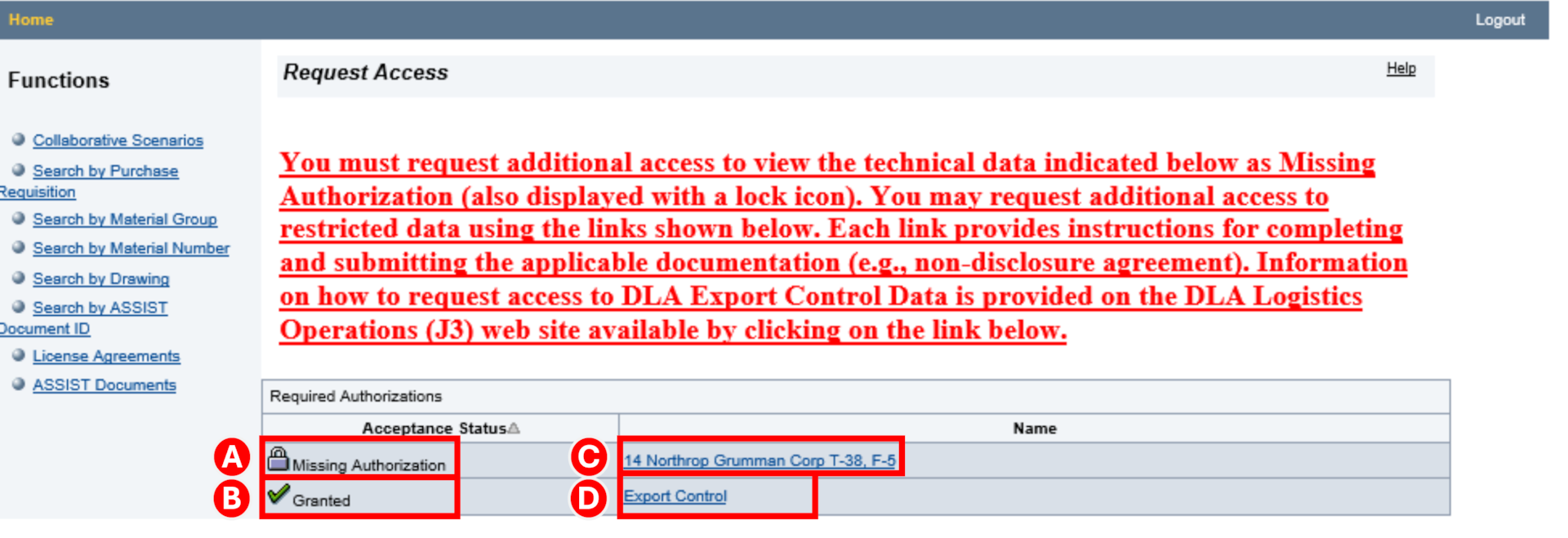

Restricted data is indicated by a lock icon beside the document, and a warning message will appear.
Restricted data requires additional access permission in order to access the information. If a Vendor is not certified to view restricted data, they must obtain the appropriate certifications by submitting a license agreement application form to gain access.  License agreement application forms can be downloaded from cFolders.

 For more information on license agreements in DoD acquisitions, please consult Understanding and Leveraging Data Rights in DoD Acquisitions (PDF).

  1. Lock icon- Additional access to tech data is indicated as Missing Authorization with a lock icon.
  2. Company Name- Select the company name which is linked with instructions on requesting additional access to restricted data.
  3. Check mark- Check mark indicates the acceptance status of access granted.
  4. Export Control- Select the export control link for instructions on completing and submitting the applicable documentation to request additional access.

Restricted tech data is indicated by a lock icon.
How to Access cFolders and Technical Data
Restricted tech data is indicated by a lock icon.
Photo By: Jakia Velazquez
VIRIN: 240819-D-D0441-9001


The additional access to data covered by license agreements will be tracked and approved by a DLA Point of Contact (POC).

  • To locate your POC during solicitation, e.g. Acquisition Specialist,  review Block 5 of form SF18 and Block 7 of form SF33.
  • To locate your POC after award, review Block 6  of form  DD1155 and Block 5 of form SF26.

Review the restricted data types below and follow the instructions to gain access to the technical data:

Export-controlled technical data is “controlled technical information” and “covered defense information” as defined in DFARS clauses:

This data type requires United States/Canada Joint Certification Program (JCP) certification to access.  Visit the JCP  site and complete the DD 2345 form (PDF).  After approval, cFolders will be updated with the Vendor’s information and they will have access to export control data.

  • Vendors, and any source(s) of supply they use for contract fulfillment, must have an active JCP certification and an active DLA Enhanced Joint Certification Program (EJCP) certificate if they are interested in DLA procurement opportunities that include export-controlled technical data.
  • The DLA EJCP certificate is valid for three years from the date of approval. Vendors must reapply to renew their EJCP certification 30 days prior to its expiration date to avoid a gap in certification. Vendors should follow the instructions at the EJCP link  or contact the JCP/EJCP Team at  jcp-admin@dla.mil to renew their EJCP certificate.
  • For more information and instructions to obtain the JCP certification, visit DLA's JCP site. Information and instructions to obtain or renew a EJCP approval can be found DLA’s Enhanced Validation site.

 Export control data is indicated by a Y in the Export Control column.

Export control data is identified as a "Y" in the Export Control column.
How to Access cFolders and Technical Data
Export control data is identified as a "Y" in the Export Control column.
Photo By: Jakia Velazquez
VIRIN: 240722-D-D0441-9020

Foreign Secure Data No Foreign Certification is required for access to foreign secure data.  This information may not be disseminated in ANY form to foreign governments, foreign nationals, foreign or international organizations, or non-U.S. citizens.  Follow the instructions below to access the form:

  1. Go to DLA Collaboration Folders (cFolders) and then select the Licensing Agreements link under the Functions section.
  2. Select the Foreign Secure link and download the form.
  3. Fax the form to the POC listed.
  4. cFolders will notify you when access is granted.

Licensing agreement numbers tell the Vendor which forms they must have on file to receive restricted data. These numbers can be found in the licensing agreement field on cFolders. Follow the instructions below to access the form:

  1. Go to DLA Collaboration Folders (cFolders) and then select the Licensing Agreements link under the Functions section.
  2. Select the appropriate licensing agreement and download the form
  3. Mail or fax the form to the POC listed.
  4. cFolders will notify you when access is granted.

Back to Top

Points of Contact

If a Vendor encounters any issues while working in cFolders, there are multiple Points of Contact (POCs) that can provide assistance.

cFolders System Access Issues

Contact the DISA Global Service Desk if a Vendor experiences cFolders system access issues such as log in problems or password resets.

cFolders System Access Issues

  • DISA Global Service Desk: 1-844-347-2457, Press 5, and then speak or enter D-L-A

Technical Data Package Issues

Complete a customer service request at DLA Product Data Management Division (PDMD) Customer Service if a Vendor requires customer support for Technical Data Packages or Bidset discrepancies.  Some examples of issues include incomplete or missing documents, lag time errors, empty technical data files, additional access issues, etc.

Technical Data Customer Support

General Questions

Contact the Customer Service Help Line for general questions (other than log in issues), or contact the Vendor’s acquisition specialist when additional technical data is needed for the original solicitation or contract.

General Questions

  • DLA Product Data Customer Service Help Line:  1-804-279-3477
    • Leave a message, calls will be returned within 24 business hours
  • Contact the acquisition specialist for additional tech data that was not supplied with the solicitation or contract.

DLA Enterprise Help Desk (EHD)

Vendors should contact the DLA Enterprise Help Desk (EHD) for:

  • cFolders Password Issues/Resets
  • cFolders accounts will be locked after 30 days of inactivity
  • EHD Phone: 1-855-352-0001

Back to Top

Resources

Back to Top

Terms Glossary

Find meanings for acronyms, abbreviations, and codes used throughout the process article below in the table:

Terms Used Meaning
CAGE Commercial and Government Entity
CDRL Contract Data Requirements List
DIBBS DLA Internet Bid Board System
DLA Defense Logistics Agency
EJCP Enhanced Joint Certification Program
JCP Joint Certification Program
LTC Long-Term Contract
MAT # Material Number
NIIN National Item Identification Number
NSN National Stock Number
PAR Post Award Request
PDF Portable Document Format
PDMD Product Data Management Division
PN Part Number
POC Point of Contact
QAP Quality Assurance Provisions
RFP Request for Proposal
TDP Technical Data Package
